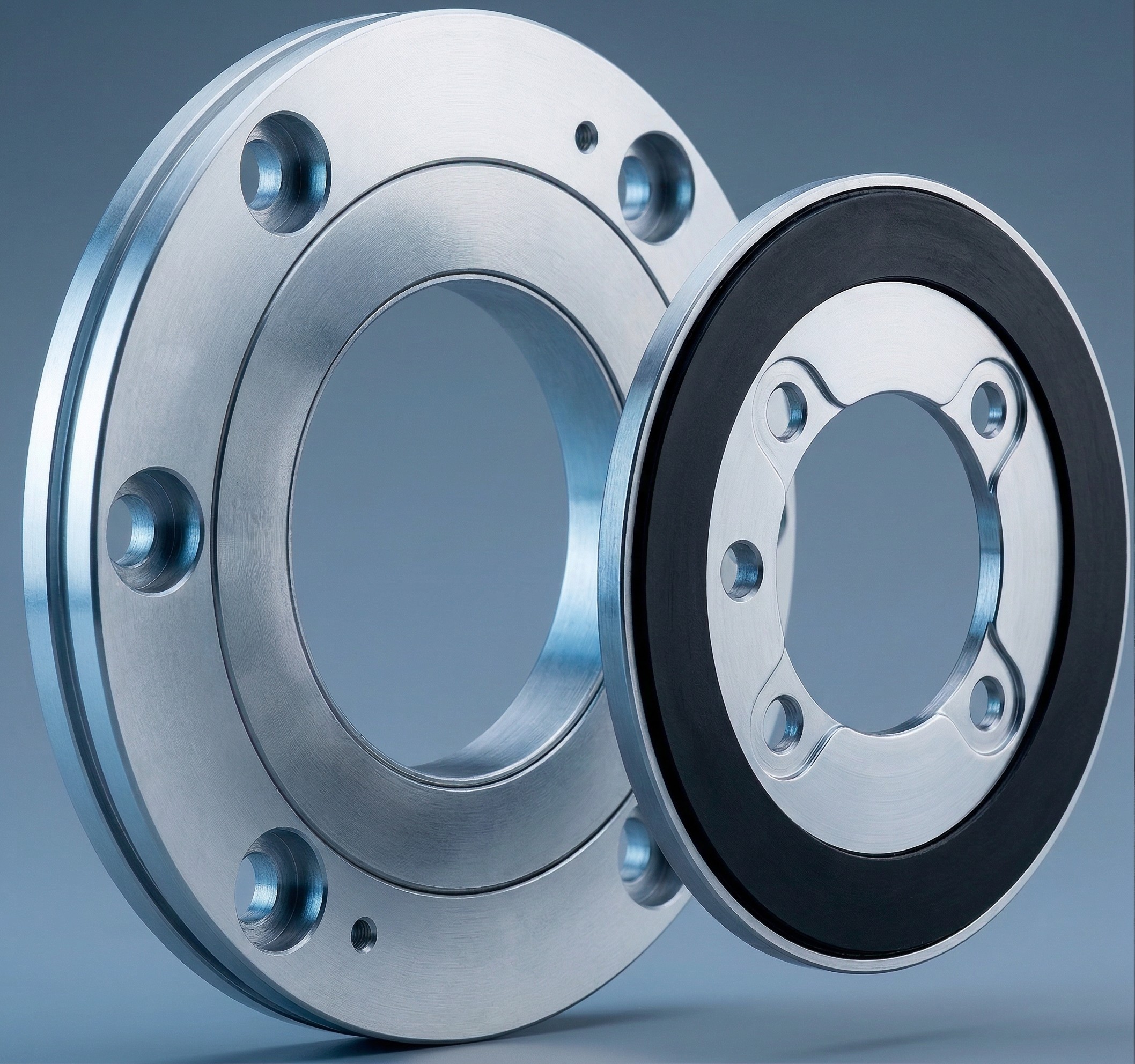

Rotary Encoder: High-Precision Absolute Position Measurement
Make your application stand out with a precise, versatile, and all-in-one position measurement solution. The Rotary Encoder delivers exceptional accuracy, repeatability, and high resolution to meet the demands of advanced industrial systems.
Utilizing Giant Magneto Impedance technology for position measurement, this encoder uniquely capitalizes on the interaction between magnetic fields and electromagnetic induction. The result is absolute performance with completely hysteresis-free operation.
Engineered for reliability, the Rotary Encoder features a robust design with large mounting tolerances, ensuring seamless integration and flexibility in complex assemblies. Housed in durable IP67-rated aluminum or steel, it is built to withstand harsh environments. Combined with plug-and-play installation options, this encoder acts as a highly reliable, no-compromise solution for a limitless range of operational requirements.
| Model | Encoder Stator (OD / ID) | Encoder Rotor (min OD* / max ID*) | Thickness** | Resolution | Accuracy | Ingress Protection |
|---|---|---|---|---|---|---|
| Rotary Encoder 055 | 55 mm / 26.2 mm | 39 mm / 25 mm | 7.8 mm | 21 bits / rev. | ±0.010º / ±36” | IP67 |
| Rotary Encoder 069 | 69 mm / 40.2 mm | 53 mm / 39 mm | 7.8 mm | 22 bits / rev. | ±0.008º / ±29” | IP67 |
| Rotary Encoder 080 | 80 mm / 51.2 mm | 64 mm / 50 mm | 7.8 mm | 23 bits / rev. | ±0.004º / ±14” | IP67 |
| Rotary Encoder 096 | 96 mm / 67.2 mm | 80 mm / 66 mm | 7.8 mm | 23 bits / rev. | ±0.003º / ±10” | IP67 |
| Rotary Encoder 150 | 150 mm / 121.2 mm | 134 mm / 120 mm | 7.8 mm | 23 bits / rev. | ±0.002º / ±8” | IP67 |
