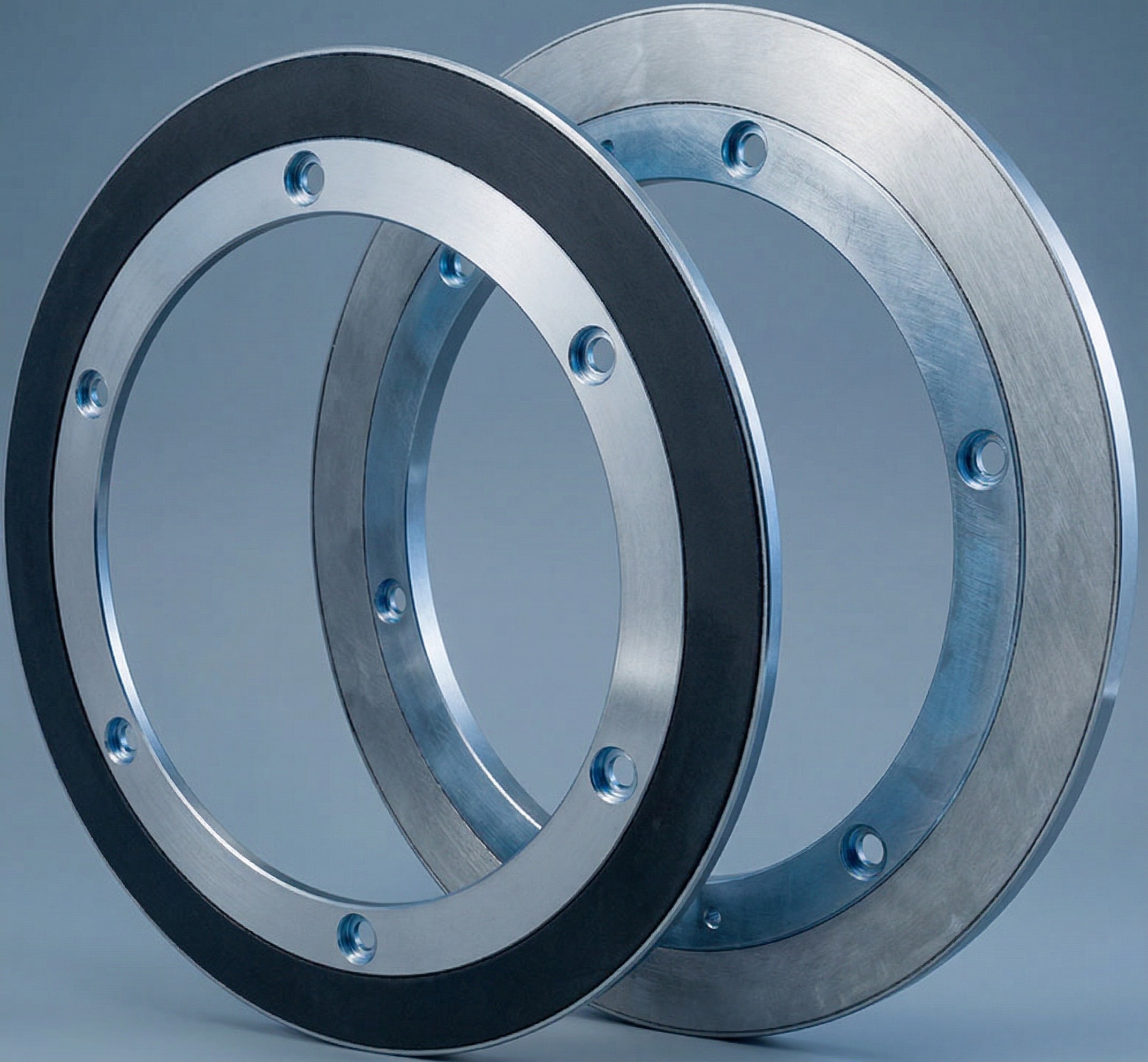

High-Precision Angle Encoder: Accuracy in Arcseconds
Engineered for the most demanding industrial applications, the Angle Encoder delivers hysteresis-free performance and exceptional precision. When conventional rotary encoders fall short, this advanced feedback solution provides reliable, high-resolution measurements to guarantee optimal system performance.
Key Technical Features
- Arcsecond Precision: Delivers uncompromising accuracy up to ±3” with resolutions reaching 25 bits per revolution.
- Hysteresis-Free Operation: Ensures consistent, repeatable motion control and positioning.
- Harsh Environment Reliability: Fully encased in an IP67-rated stainless steel housing with an extended temperature range guarantee.
- Seamless Integration: Features plug-and-play operation and wide mounting tolerances for maximum flexibility across an unlimited range of applications.
Technical Specifications
| Model | Encoder Stator (OD / ID) | Encoder Rotor (min OD / max ID) | Thickness | Resolution | Accuracy | IP Rating |
|---|---|---|---|---|---|---|
| Angle Encoder 160 | 160 mm / 110 mm | 160 mm / 110 mm | 10.8 mm | 24 bits / rev. | ±5.5” | IP67 |
| Angle Encoder 180 | 180 mm / 130 mm | 160 mm / 110 mm | 10.8 mm | 24 bits / rev. | ±5.5” | IP67 |
| Angle Encoder 250 | 250 mm / 200 mm | 230 mm / 180 mm | 10.8 mm | 25 bits / rev. | ±3” | IP67 |
