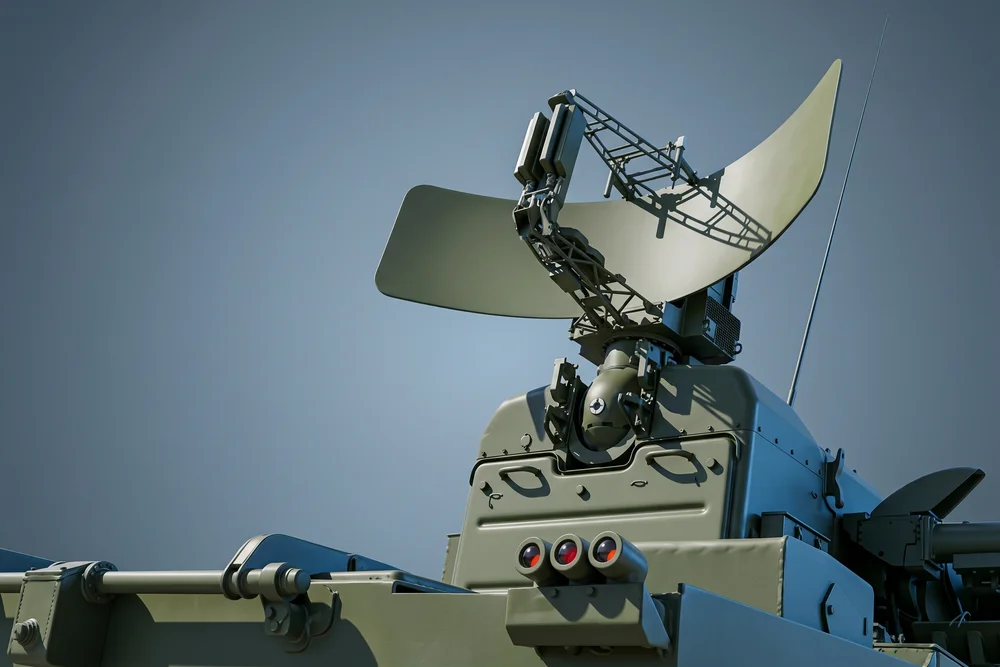

In communication setups, surveillance systems, and defense tracking arrays, antennas must maintain uninterrupted electrical connectivity while performing continuous 360° rotation. Traditional wired configurations introduce cable strain, twist under constant rotation, and induce mechanical fatigue, which creates critical points of failure.
To resolve these mechanical limitations, design engineers implement specialized antenna slip ring assemblies. These electro-mechanical joints act as a mechatronic bridge, allowing power, data protocols, and high-frequency signals to cross moving interfaces without signal loss or physical component degradation.
Architectural Form Factors for Antenna Systems
Antenna assemblies vary significantly based on spatial limitations and payload dynamics. Consequently, designers rely on distinct structural configurations of the rotary joint to align with the mechanical layout of the array:
- Through-Bore Architecture: Featuring a centralized hollow passage (bore diameters typically spanning from 3 mm to over 100 mm), this design provides a clear internal pathway down the exact spinning axis. This configuration allows engineers to route structural drive shafts, plumbing, gas lines, or centralized coolant lines directly through the center of rotation to mitigate thermal throttling in active antenna arrays.
- Capsule and Compact Configurations: Optimized for applications with strict spatial footprints, such as airborne drone tracking antennas or compact vehicle-mounted sensor pods, capsule architectures minimize total payload mass. Shrunk to outer diameters between 12 mm and 25 mm, these lightweight components enable smaller servo motors to function with maximum agility while reducing the peripheral sliding velocity between brushes and rings to extend operating lifespans.
Radio Frequency (RF) and Multimedia Integration Metrics
Modern antenna platforms (specifically phased-array radars and high-definition video grids) demand cohesive interfaces capable of transferring high pulse-power alongside delicate high-bandwidth telemetry without cross-talk or insertion losses.
| Performance Parameter | Technical Specification Range | Operational Impact on Antenna Systems |
| RF Coaxial Transmission | Frequencies up to 3 GHz (standard models) or 18 GHz (custom channels) | Enables uncompressed, crisp data delivery and high-frequency antenna reflections without signal jitter. |
| Contact Metallurgy | Advanced Gold-on-Gold brush and ring interfaces | Minimizes dynamic contact resistance (< 10 mΩ), suppressing electrical noise during continuous rotation. |
| Circuit Density Options | Scalable variations supporting from 3 up to 56 individual circuits | Accommodates distinct power routing paths (e.g., 10 A to 20 A lines) alongside low-current signals within one envelope. |
| Supported Protocols | CANopen, EtherCAT, Industrial Ethernet, and HD-SDI/3G-SDI streams | Guarantees native compliance with motion controllers and real-time processing computers. |
To fulfill multi-functional data demands, electrical lines are frequently packaged within a single turning hub alongside Fiber Optic Rotary Joints (FORJ), specialized waveguides, or liquid rotary unions for comprehensive media integration.
Secure Your Components Stock Now with Torquety
Reliable automation components for high-performance applications.
Operational Environmental Control and Feedback Topologies
Antenna deployments on maritime vessels, outdoor towers, or high-altitude platforms encounter harsh climatic shifts, mechanical shocks, and high vibrations. To ensure reliability across these field conditions, assemblies utilize distinct protective measures and automated feedback mechanisms:
- Rugged Sealing Boundaries: Casing enclosures provide ingress protection ratings from IP54 up to IP67. This blocks dust particles and moisture penetration, preventing the micro-corrosion that corrupts command signals.
- Thermal Conditioning Elements: Rated for extended thermal windows from -40°C to +80°C, custom antenna joints can integrate anti-condensation heaters to maintain a stable internal climate and eliminate moisture buildup.
Frameless Encoder Consolidation: To facilitate precise target indexing and telemetry feedback, modern systems embed frameless absolute inductive position encoders directly inside the mechanical housing. Employing absolute hollow-shaft technologies (with resolutions up to 22 bits/revolution and accuracy down to ± 0.012°) provides high angular tracking loop feedback while eliminating backlash, hysteresis, and sensitivity to electromagnetic noise.
