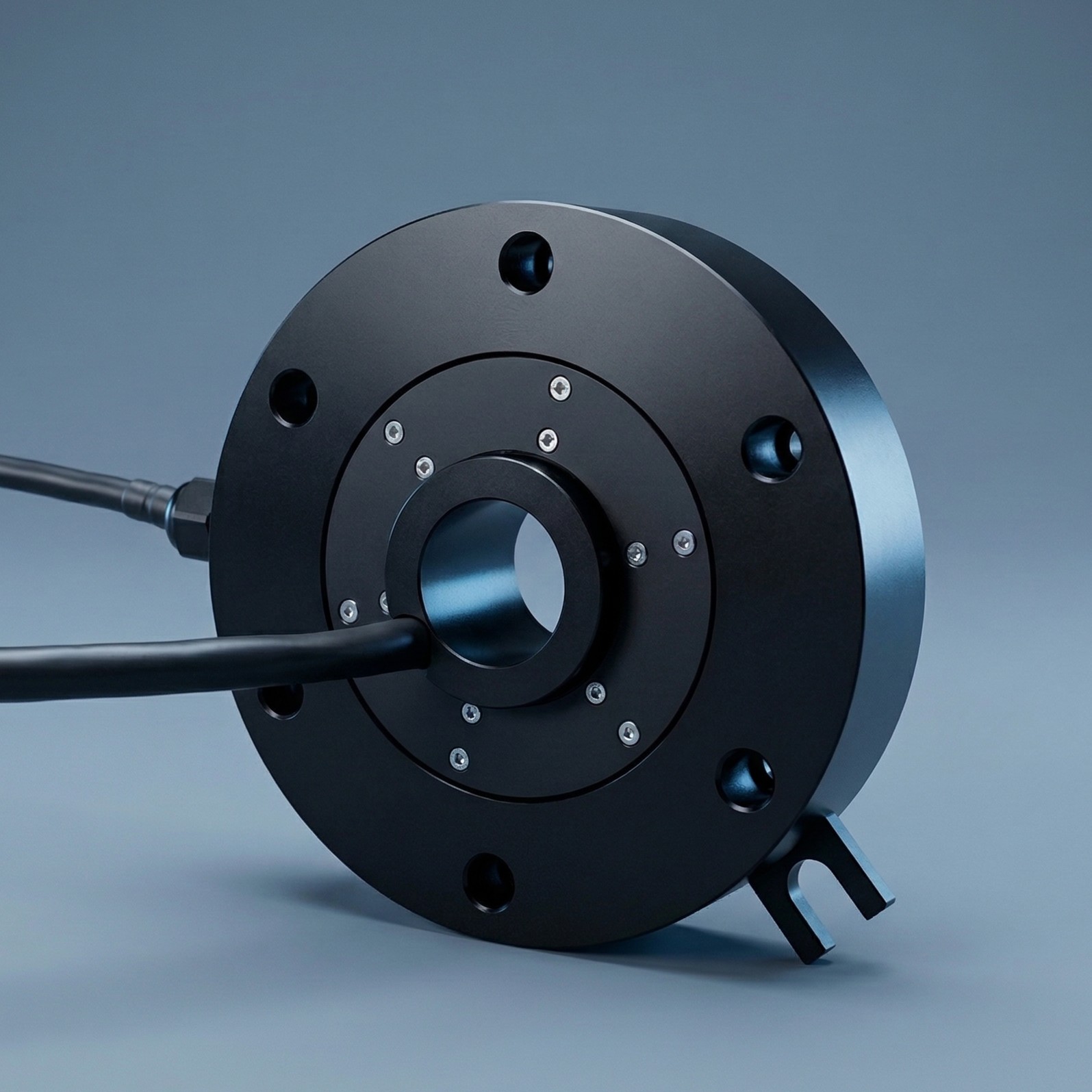

Flat Slip Rings: Ultra-Compact 40mm Through-Bore Solution
Engineered for applications with severe vertical space constraints, Flat Slip Rings deliver high-density signal and power transmission in an ultra-low profile design. With a maximum total height of just 40 mm, these slip rings offer a space-saving footprint without compromising on electrical performance. They are capable of accommodating up to 17 signal circuits alongside 3 dedicated power circuits rated at 10 A.
Equipped with a standard 40 mm through-bore (hollow shaft), these units allow for seamless integration around existing mechanics, pneumatics, or hydraulics. Built on advanced contact technology, the Flat Slip Rings provide highly reliable, completely maintenance-free operation for demanding industrial environments.
Key Attributes
- Ultra-Compact Design: Highly optimized 40 mm height profile.
- Hollow Shaft Architecture: 40 mm through-hole for versatile center-routing and mounting.
- Maintenance-Free: Engineered for sustained performance with zero required upkeep.
Technical Specifications
| Torquety SKU | Model | Specifications / Details | Action |
|---|---|---|---|
| TQ-RJ-F01 | F01 | Flat slip ring (pancake style). Total height of just 40 mm. Up to 17 signal circuits and 3 power circuits rated at 10 A. 40mm through-hole. Maintenance-free design. |
