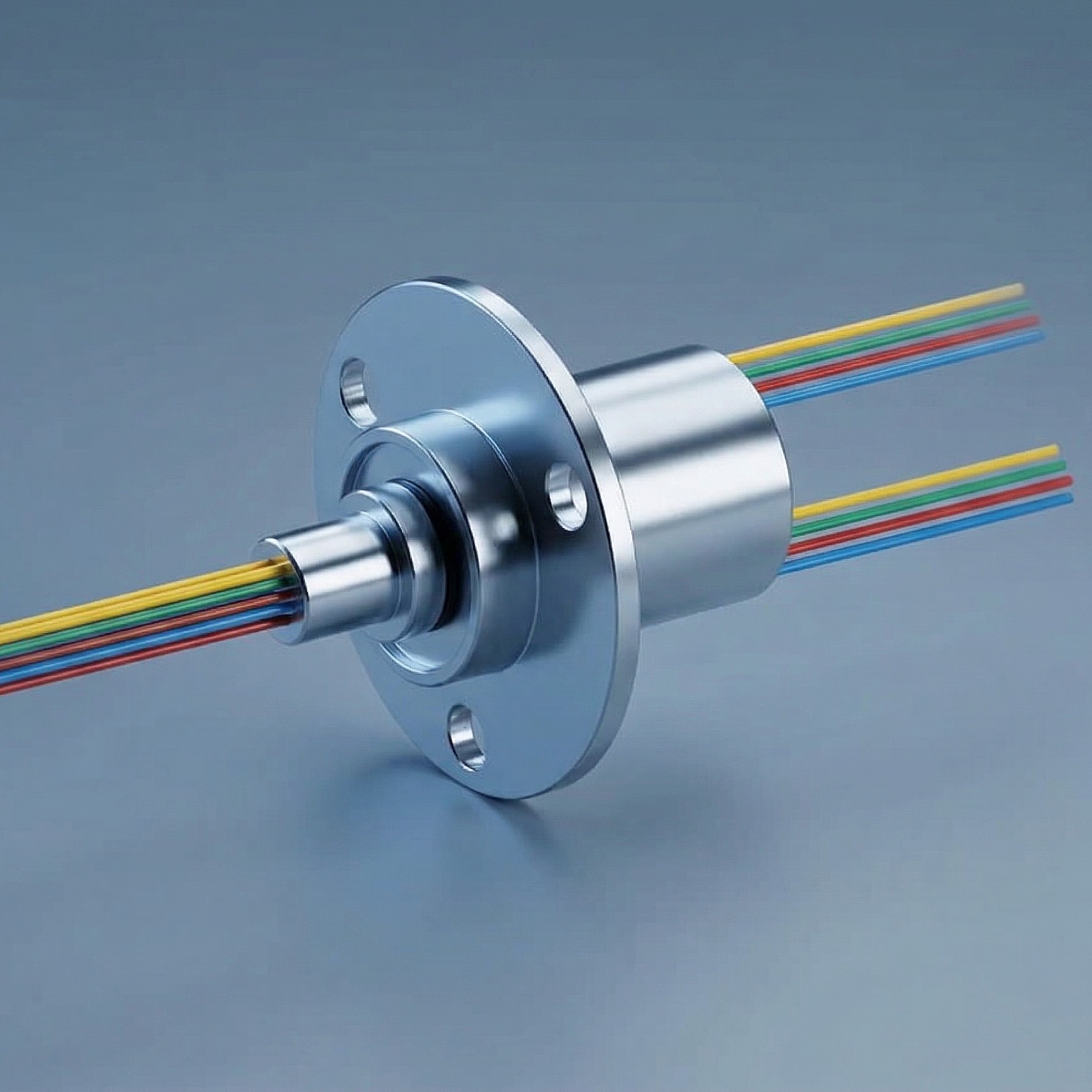

High-Performance Capsule Slip Rings: Compact Electrical Rotary Joints
The Capsule Slip Rings series features precision-engineered electrical rotary joints utilizing premium gold-based alloy contacts. Designed specifically for applications where strict miniaturization and uncompromising reliability are critical, these slip rings specialize in the seamless transmission of low-current and high-frequency signals, including fieldbus and Radio Frequency (RF) data protocols. Highly versatile, the series is available in diverse configurations with housing diameters ranging from 12.4mm to 25mm, accommodating complex system integrations with up to 56 independent circuits.
Advanced Durability Upgrade: The Capsule Slip Rings series is now available with an innovative multi-wire brush option. This technological enhancement increases the operational service life by 5 to 10 times compared to traditional single-wire brush assemblies, minimizing maintenance intervals and maximizing long-term stability.
Technical Specifications
- Circuit Capacity: Scalable up to 56 circuits
- Signal Compatibility: Radio Frequency (RF) and low-current transmissions
- Contact Technology: High-reliability gold-to-gold metal brushes
- Environmental Rating: IP65 protection class
Key Attributes
- Ultra-compact design engineered for restricted-space applications
- Highly customizable configurations to meet specific integration needs
- Optimized for secure, high data-rate transmission
- IP65-rated enclosure ensuring protection against dust and fluid ingress
Model Configurations
| Torquety SKU | Model | Specifications / Details | Action |
|---|---|---|---|
| TQ-RJ-A01 | A01 | Versatile, compact capsule slip ring. 6 circuits, gold-gold contact material. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A02 | A02 | Versatile, compact capsule slip ring. 12 circuits, compact size, 12.4mm diameter. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A03 | A03 | Versatile, compact capsule slip ring. 24 circuits, gold-based alloys for high reliability. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A03-ET | A03-ET | Versatile, compact capsule slip ring. 24 circuits, designed for high-speed Ethernet (100Base-T) transmission. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A04 | A04 | Versatile, compact capsule slip ring. 36 circuits, transmission of low-current and signals. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A04-ET | A04-ET | Versatile, compact capsule slip ring. 36 circuits, designed for high-speed Ethernet (1000Base-T) transmission. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A05 | A05 | Versatile, compact capsule slip ring. 48 circuits, gold-based alloys, IP65 protection. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A06 | A06 | Versatile, compact capsule slip ring. 56 circuits, 25mm diameter, excellent signal integrity. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. | |
| TQ-RJ-A07 | A07 | Versatile, compact capsule slip ring. custom circuitry layout, miniature housing. Gold-based alloys for contact material. Transmission of low-current and high-frequency signals. IP65 rated. |
