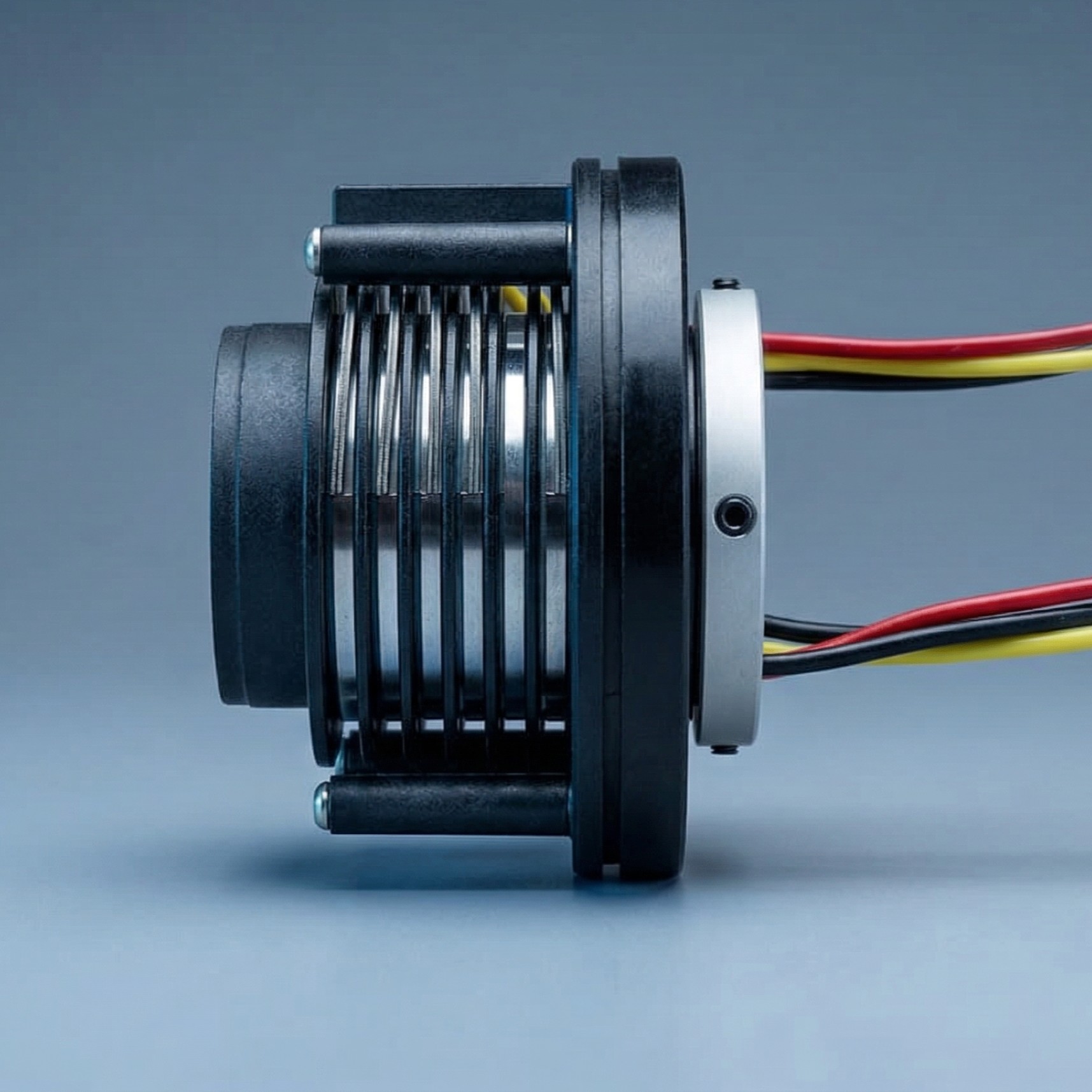

Open Slip Rings
The Open Slip Rings are highly efficient electric rotary joints engineered specifically for electromechanical applications requiring a through-bore and exactly three high-current circuits. Utilizing a minimalist, frameless architecture with a single-bearing design, these slip rings eliminate bulky housing. This ensures a low-friction, cost-effective, and seamlessly integrable solution for continuous power transmission in demanding rotary systems.
Technical Specifications
- Maximum Bore Size: Up to 60mm
- Maximum Current: Up to 60A
Core Attributes
- Customizable configurations
- Frameless architecture
- Hollow shaft / Through-bore design
Model Matrix
| Torquety SKU | Model | Specifications / Details | Action |
|---|---|---|---|
| TQ-RJ-E01 | E01 | High-current electric rotary joint. Three circuits with high currents and a through bore. Open Slip Ring with 25mm bore, 3 power circuits rated at 20A. Minimalist design with no housing for cost-effective integration. | |
| TQ-RJ-E02 | E02 | High-current electric rotary joint. Three circuits with high currents and a through bore. Open Slip Ring with 40mm bore, 3 power circuits rated at 40A. Minimalist design with no housing for cost-effective integration. | |
| TQ-RJ-E03 | E03 | High-current electric rotary joint. Three circuits with high currents and a through bore. Open Slip Ring with 50mm bore, 3 power circuits rated at 50A. Minimalist design with no housing for cost-effective integration. | |
| TQ-RJ-E04 | E04 | High-current electric rotary joint. Three circuits with high currents and a through bore. Open Slip Ring with 60mm bore, 3 power circuits rated at 60A. Minimalist design with no housing for cost-effective integration. |
