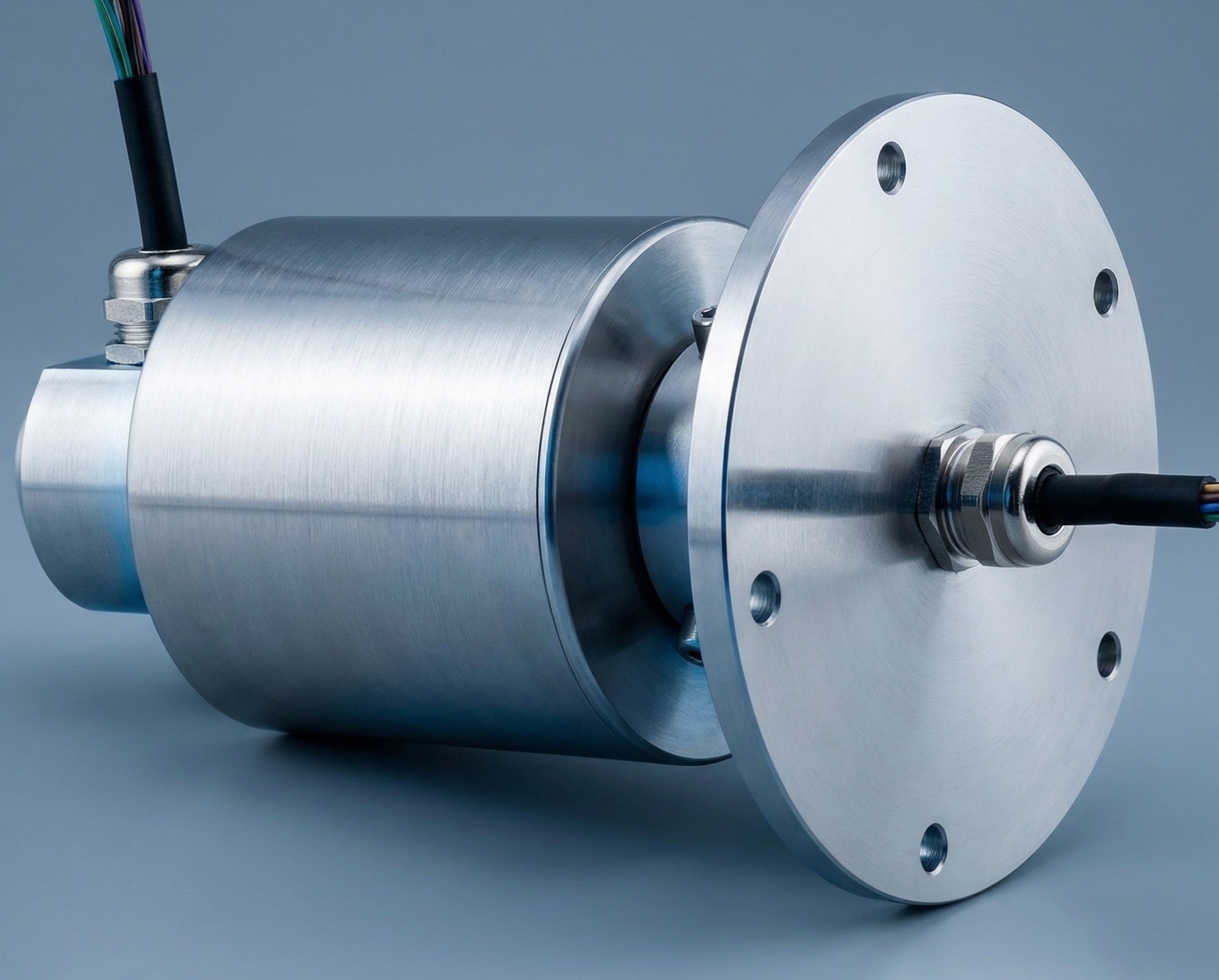

Ruggedized Slip Rings: Heavy-Duty Electric Rotary Joints
The Ruggedized Slip Rings series provides uncompromising reliability for demanding industrial applications. Engineered with all-stainless-steel external components, these electric rotary joints deliver a highly robust solution specifically designed to withstand harsh environments and mechanical stress.
This family of high-performance rotary joints is available in multiple configurations to accommodate varying electrical requirements. Depending on the specific series, circuit capacities range from a standard maximum of 5A per circuit up to 15A continuous current, allowing for versatile power and signal transmission tailored to your system’s needs.
Key Technical Specifications & Attributes
- Current Capacity: Up to 15A continuous (Maximum rating up to 20A)
- Circuit Density: Scalable up to 96 independent circuits
- Material Construction: All-stainless-steel exterior for maximum durability
- Environmental Protection: IP65 rated (Dust-tight and water-resistant)
- Transmission Performance: Optimized for high data-rate signaling
- Flexibility: Fully customizable electrical configurations
Model Specifications Matrix
| Model | 5A Circuits | Length (L) in mm | PG Type |
|---|---|---|---|
| Ruggedized Slip Ring 01-U-A-00/06 | 6 | 63 | PG7 |
| Ruggedized Slip Ring 01-U-A-00/12 | 12 | 77 | PG9 |
| Ruggedized Slip Ring 01-U-A-00/18 | 18 | 91 | PG11 |
| Ruggedized Slip Ring 01-U-A-00/24 | 24 | 105 | PG16 |
| Ruggedized Slip Ring 01-U-A-00/30 | 30 | 119 | – |
| Ruggedized Slip Ring 01-U-A-00/36 | 36 | 133 | – |
| Ruggedized Slip Ring 01-U-A-00/42 | 42 | 147 | – |
| Ruggedized Slip Ring 01-U-A-00/48 | 48 | 161 | – |
