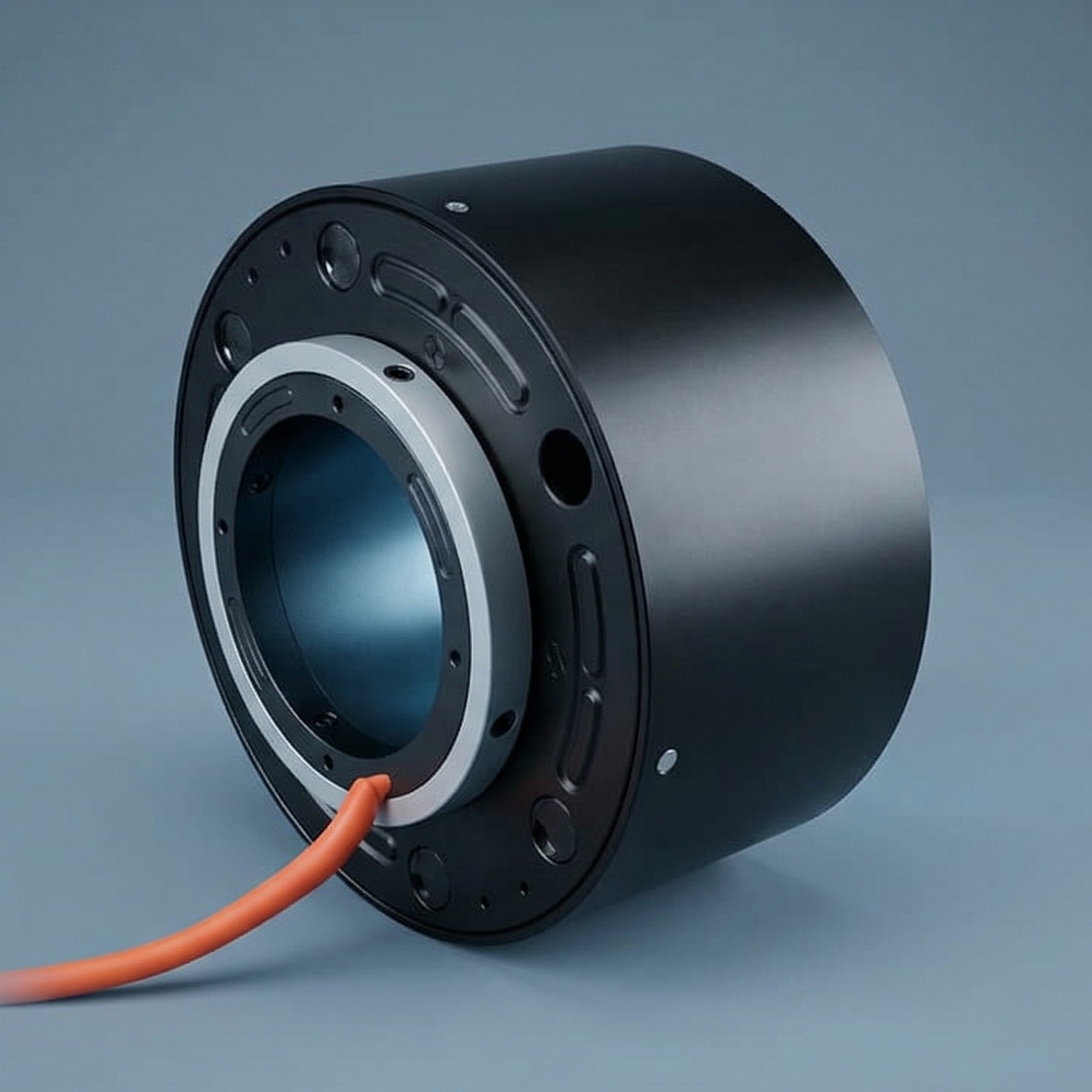

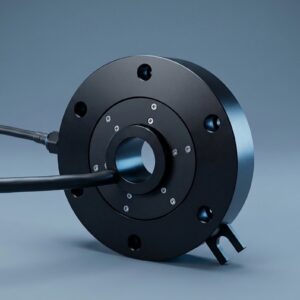

Through-Bore Slip Ring
The Through-Bore Slip Ring is an advanced electrical rotary joint engineered for high-performance power and signal transmission. Featuring a modular design with a central hollow shaft, this versatile component is ideal for complex applications requiring the simultaneous routing of multiple circuits. Standard configurations support high-speed data transfer, including high baud rate Fieldbus and Ethernet pass-through capabilities up to 1000 Mbps. Designed for maximum mechanical flexibility, this family of rotary joints is available in a wide range of size configurations, offering inner bore diameters from 3mm up to 100mm.
Key Technical Specifications & Attributes
- Bore Diameter: 3mm up to 100mm (Hollow shaft architecture)
- Circuit Capacity: Configurable up to 96 independent circuits
- Data Transmission: High data-rate support, including Gigabit Ethernet (1000 Mbps)
- Environmental Protection: IP65 rated for reliable operation in harsh environments
- Modularity: Highly customizable design to meet specific application requirements
Model Specifications
| Torquety SKU | Model | Specifications / Details | Action |
|---|---|---|---|
| TQ-RJ-C01 | C01 | Central hole design for mounting on shaft. Through-bore slip ring with 3mm inner diameter, 6 circuits. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C02 | C02 | Central hole design for mounting on shaft. Through-bore slip ring with 12mm inner diameter, 12 circuits. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C03 | C03 | Central hole design for mounting on shaft. Through-bore slip ring with 25mm inner diameter, 18 circuits. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C04 | C04 | Central hole design for mounting on shaft. Through-bore slip ring with 38mm inner diameter, 24 circuits. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C04-ET | C04-ET | Central hole design for mounting on shaft. Through-bore slip ring with 38mm inner diameter, 2 Ethernet circuits (1000Base-T). High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C05 | C05 | Central hole design for mounting on shaft. Through-bore slip ring with 50mm inner diameter, 36 circuits. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C05-ET | C05-ET | Central hole design for mounting on shaft. Through-bore slip ring with 50mm inner diameter, Gigabit Ethernet passing. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C05-PN | C05-PN | Central hole design for mounting on shaft. Through-bore slip ring with 50mm inner diameter, integrated pneumatic rotary union. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C06 | C06 | Central hole design for mounting on shaft. Through-bore slip ring with 60mm inner diameter, 48 circuits. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C06-ET | C06-ET | Central hole design for mounting on shaft. Through-bore slip ring with 60mm inner diameter, custom high-speed data transmission. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C07 | C07 | Central hole design for mounting on shaft. Through-bore slip ring with 70mm inner diameter, up to 96 circuits. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C08 | C08 | Central hole design for mounting on shaft. Through-bore slip ring with 80mm inner diameter, power & signal combination. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |

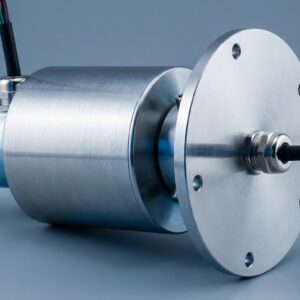

| TQ-RJ-C09 | C09 | Central hole design for mounting on shaft. Through-bore slip ring with 90mm inner diameter, ruggedized housing. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C10 | C10 | Central hole design for mounting on shaft. Through-bore slip ring with 100mm inner diameter, large through bore layout. High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. | |
| TQ-RJ-C11 | C11 | Central hole design for mounting on shaft. Through-bore slip ring with custom oversized bore layout (> 100mm). High baud rate Fieldbus pass through up to 1000Mbits. Fiber brush technology. IP65 rated. |
