The operational lifespan and electrical noise level of a rotary slip ring are governed by the tribological interface between its rotating rings and stationary brushes. In industrial automation applications transmitting high-speed digital fieldbuses (Profinet, EtherCAT) alongside motor power, maintaining low contact resistance across millions of revolutions is essential.
Servotecnica utilizes advanced Gold-on-Gold Fiber Brush Technology to guarantee maintenance-free rotational performance and signal integrity.
Why Traditional Metal Graphite Brushes Fail in Data Transmission
Legacy industrial slip rings used silver-graphite or copper-graphite blocks pressing against brass rings. While effective for high-current power transmission, graphite brushes generate conductive wear debris, require periodic cleaning, and create high electrical contact noise ($> 50 ext{ m}\Omega$), which causes packet loss in digital communications.
Secure Your Components Stock Now with Torquety
Reliable automation components for high-performance applications.
The Gold-on-Gold Fiber Brush Advantage

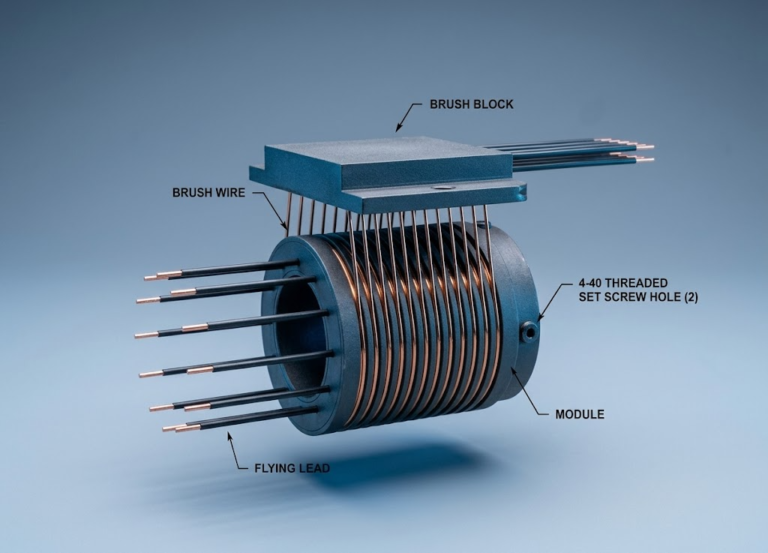

Modern precision slip rings employ a bundle of fine gold alloy wire brushes resting in a V-groove gold-plated ring track. This multi-filament design offers significant technical benefits:
- Multi-Point Contact Redundancy: Multiple fiber wire points per channel ensure continuous signal continuity even during high vibration.
- Ultra-Low Electrical Noise: Contact resistance variation under $< 10 ext{ m}\Omega$, preserving high-speed Gigabit Ethernet signals.
- Zero Maintenance & Debris: Gold-plated alloys minimize frictional wear and eliminate conductive dust.
- Extended Lifespan: Tested for over $50,000,000$ to $100,000,000$ operational revolutions.
Contact Material Selection Matrix
| Contact Pair | Electrical Noise Level | Maintenance Requirement | Best Suited For |
|---|---|---|---|
| Gold Alloy / Gold Plated Ring | Ultra-Low ($< 10 ext{ m}\Omega$) | Zero / Maintenance-Free | Sensors, Ethernet, Fieldbus, Low Power |
| Silver Alloy / Silver Ring | Low ($< 20 ext{ m}\Omega$) | Minimal | Medium Power & Analog Signal Circuits |
| Silver Graphite / Copper Ring | High ($> 50 ext{ m}\Omega$) | Periodic Debris Cleaning | Heavy High-Current Power Lines ($> 100 ext{A}$) |
“Gold-on-gold contact engineering ensures reliable high-speed data transmission without packet loss or signal degradation over tens of millions of cycles.”
