At the heart of a wind turbine’s efficiency and safety lies the pitch control system, which continuously adjusts the angle of the turbine blades to optimize energy capture and protect the structure during extreme weather.

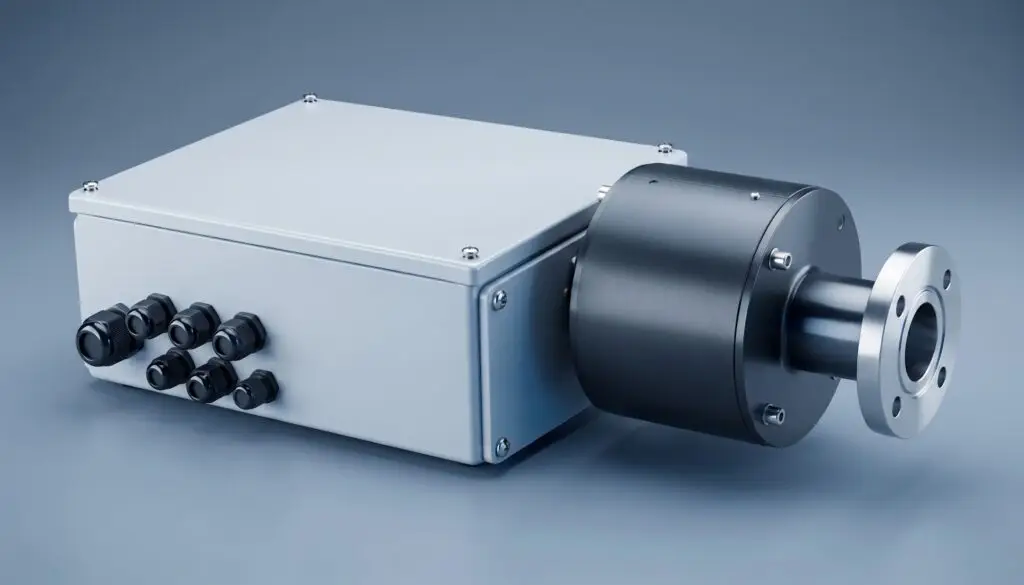

Bridging the gap between the stationary nacelle and the rotating hub to make this control possible is the pitch control slip ring.
The Engineering Challenge
Operating high above the ground or out at sea, wind turbine slip rings must endure rigorous operational and environmental stresses. They are subjected to continuous rotation, vibration, and drastic temperature fluctuations.
The environmental conditions for these applications are exceptionally tough, requiring an extended temperature range and special surface treatments to reduce external noise and prevent corrosion. Furthermore, there is a strict need to maintain a ruggedized design of circuits in very little space and to keep the overall weight to a minimum.
Secure Your Components Stock Now with Torquety
Reliable automation components for high-performance applications.
Key Technical Specifications
To meet these demands, custom-designed slip rings are often required. For instance, specific slip rings designed for wind turbines feature customized solutions to ensure reliable operation.
Here is a breakdown of technical features commonly integrated into high-performance wind turbine slip rings based on successful custom implementations:
| Feature | Specification / Detail |
| Circuitry | Up to 27 circuits for complex signal and power routing. |
| Data Transmission | 2 Channels CanOpen for reliable communication of power and signals. |
| Environmental Protection | IP54 sealing to protect against dust and moisture ingress. |
| Operating Temperature | -40°C to +80°C to withstand severe climates. |
| Internal Climate Control | Anti-condensation heaters to prevent moisture buildup inside the unit. |
| Connectivity | Specific connectors fitted to meet the need for compact size and easy installation. |
Advancements in Pitch Slip Ring Design
Modern pitch control slip rings are evolving to offer more than just basic electrical transmission. The industry is moving toward integrated mechatronic solutions.
- Encoder Integration: For precise pitch adjustment, the control system needs to know the exact position of the rotating components. Advanced slip rings now seamlessly integrate absolute encoders (such as the Zettlex incOder) directly into the assembly, creating a unified solution for power, data, and position feedback.
- Open and Capsule Variations: Depending on the specific architecture of the turbine, engineers might utilize extremely compact high-current capsule slip rings (like the A Series) , or open slip rings (like the E Series) which provide high performance and easy integration at a competitive price for areas with lower contamination risks.
Summary
The pitch control slip ring is a vital lifeline in a wind turbine, enabling the high-speed data rates and robust power transmission necessary to keep the blades turning safely and efficiently. By combining ruggedized materials, anti-condensation technology, and integrated position encoders, manufacturers are ensuring that wind turbines can continue to push the boundaries of renewable energy generation.
